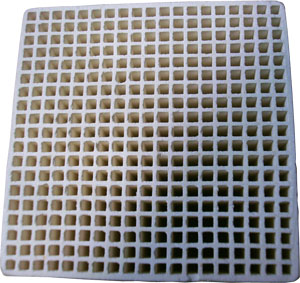

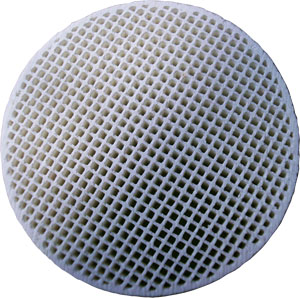

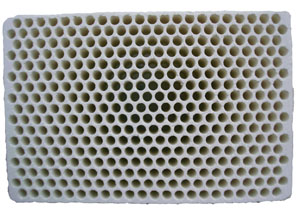

Mullite Ceramic Honeycomb Filter
Product Description
Ceramic Honeycomb Filter of KIN Filter Engineering Co.,Limited. have large surface area (m2/m3), low air-flow resistance, it’s bee mainly used as a molten iron and copper alloy filter in casting and foundry industry, can remove the impurities from metal liquid perfectly, then improve casting product quality.
|
Material And Item
|
Mullite Ceramic Honeycomb Filter
|
|
Raw material
|
cordierite
|
|
AL2O3 (%)
|
≥60%
|
|
Hole type
|
Square/Triangle/Round
|
|
Millihole (µm)
|
2-3
|
|
Coefficient of thermal expansion (*10-6/℃)
|
≤4.0
|
|
Work Temperature (℃)
|
1500
|
|
Normal temperature Pressure (MPa)
|
≥15
|
|
Thermal Shock Resistance (time/1200℃)
|
≥5
|
|
|
Max. Filtrate Capacity（kg） |
Max. Iron/steel flow rate（kg/s） |
||
|
L×W×H
|
100cpsi
|
300cpsi
|
100cpsi
|
300cpsi
|
|
37×37×9.5
|
18
|
36
|
2.27
|
3.63
|
|
43×43×9.5
|
28
|
56
|
3.18
|
4.54
|
|
55×55×12.5
|
46
|
92
|
3.63
|
5.45
|
|
66×66×12.5
|
92
|
180
|
5.45
|
8.17
|
|
81×81×12.5
|
136
|
272
|
9.08
|
13.62
|
Size is changeable according customer's requirement
