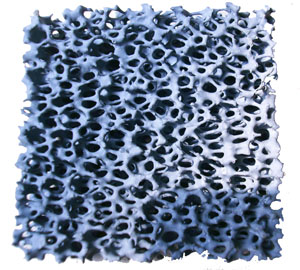

Silicon Carbide (sic) Ceramic Foam Filter

Product Description

Ceramic foam filter is been made by specific procedures and have peculiar bone-frame holes just like the shape of foam (Called three-dimensional connected channel) and myriad eyelets which only been found in big times microscope. Compare to similar ones, our ceramic foam filter have many advantages as below:

--Stable chemical composition

--Excellent strength

--Resistant to high temperature

--Calm down of the turbulent flow of metal nicely

--big ㎡/m³(surface area)

--Superior dimensional tolerances

Ⅰ Specification

Sic Ceramic Foam Filter Data Sheet
Materia /Item	Density (PPI)	Porosity (%)	Refractoriness (℃)	Bending Strength (Mpa)	Compression Strength (Mpa)	Thermal Shock Resistance (time/1100℃)
Sic (KFF-1)	4-60	90	1500	1.0	0.9	≥6

Ⅱ Function

A. Filtration

a. Separation up ad down

When the molten metal been blocked in mould, light inclusion will be separated automatically.

b. Surface filtration (Mechanic deterring)

The rest impurity after the process of “a” which is larger than the three-dimensional connected channel of filtration will be wipe off by the filtration. We said “surface filtration”.

c. Interior filtration.

The function is only belong to ceramic foam filters. the eyelets which only been found in big times microscope can wipe off more smaller impurity which can’t been prevented by the process “a” and “b”.

B. Commutated function( Calm down of the turbulent flow)

Ceramic foam filters have big rate of interspaces, can calm down the turbulent flow of metal, and especially the bone-frame structures make it.

a. Preventing whirlpool

Whirlpool can made air bubble and take back some impurities which have been separated by forward process. Our products can prevent it successfully.

b. Relax impact. Decrease drop gravel.

c. Mix round metal liquid

Ⅲ. After use

A. Reduce a great lot of impurity, eliminate air-bubble, maximum product’s surface disfigurement.

B. Improve density and intensity.

C. Improve toughness.

D. Increase the function of the product’s re-manufacturing. Such as prolong using time, decrease manufacturing cost, enhance surface quality of re-products.

E. Add the rate of productivity, decrease waste-things 60%-80%.

F. Predigest mounding system.

Ⅳ. Suggestion

A. Control the melting point satisfactorily. Especially high temperature will destroy it’s function.

B. Suitable PPI for different casting materials. usually 20ppi for grey iron, 10ppi for ductile iron.

C. Use the maximum temperature as soon as possibly.

D. The pouring highness don’t exceed20cmcommonly, and metal liquid don’t touch the filtration directly.

E. Take carefully about our products and put in on dry-wind place when non-using it.
